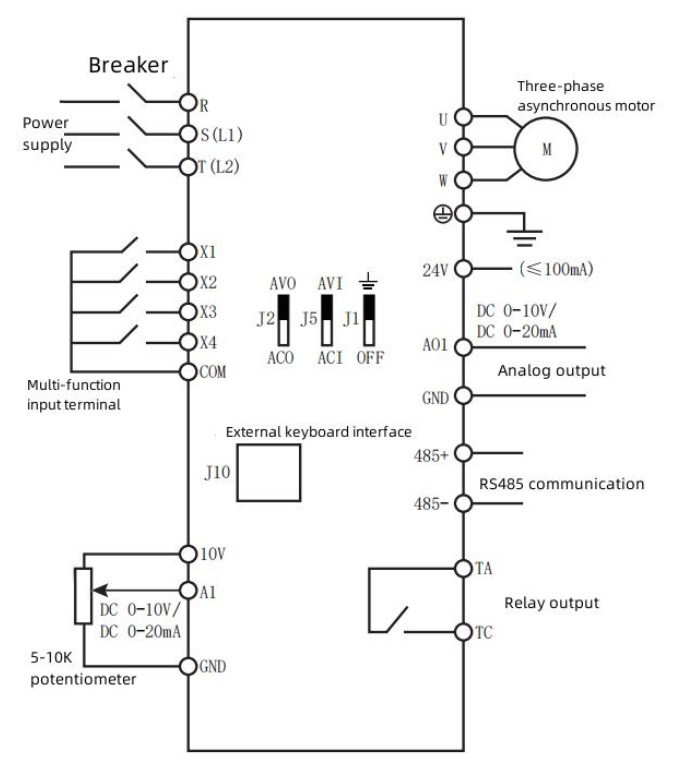

H280 Mini Frequency Inverter (PMSM)

Name: H280 Mini Frequency Inverter (PMSM)
SKU: 0

H280 series frequency inverter is a mini type vector frequency inverter, which can meet customers' various needs. Adopting internationally leading drive control technology and superior vector control performance, it supports the use of three-phase AC asynchronous motors and permanent magnet synchronous motors. It also has a unique three-phase protection function, strong anti-interference ability, and is equipped with standard RS485 communication. It also has solution for permanent magnet synchronous motors (PMSM).

Email : info@fmz-industry.com

WhatsApp : +86 15921436186

Product Details

Specification

Single-phase 220V (-15%~15%) 0.4-2.2KWThree-phase 380V (-15%~+15%) 0.75-2.2KW

H280 – 2R2G /3 R0P - T4

No.	Sign	Description	Remarks
①	H280	Product Series	FMZ H180 Series Frequency Inverter
②	2R2G	Power range + Load type	2R2G: 2.2kW; G: Heavy Load
③	3R0P	Power range + Load type	3R0P: 3kW; P: Light Load
④	T4	Voltage	S2: AC 220V(-15%)-220(+15%) 1PH Input & 3PH Output T4: AC 380V(-15%)-380(+15%) 3PH Input & 3PH Output

Product features:

(1) V/F & Vector Control

(2) Support PMSM application

(3) Built-in PLC multi-function logic control(4) Built-in PID for constant pressure water supply(5) Standard RS485 communication

(6) Ultra-low Noise: The carrier frequency is adjustable between 0.5 and 16 KHz

Model Selection Table

Model	Rated Power (KW)	Rated Input Current (A)	Outline Dimension(mm)	Package Dimension(mm)	G.W (KG)
Single-phase 220V, 50/60 Hz
H280-0R4G-S2	0.4	2.5	14372115	200120180	1.3
H280-0R7G-S2	0.75	5.0			1.3
H280-1R5G-S2	1.5	7.0			1.5
Three-phase 380V, 50/60 Hz
H280-0R7G/1R5P-T4	0.75	3.0	14372115	200120180	1.5
H280-1R5G/2R2P-T4	1.5	4.0			1.5
H280-2R2G/3R0P-T4	2.2	5.0			1.5
