Specification
Single-phase 220V (-15%~15%) 0.4-5.5KW
Three-phase 380V (-15%~+15%) 0.75-7.5KW
● 110VAC 1PH To 3PH 0.4~1.5KW
● 220VAC 1PH To 3PH 0.4~5.5KW
● 220VAC 1PH To 1PH 0.4~2.2KW
● 220VAC 3PH To 3PH 0.4~5.5KW
● 380VAC 3PH To 3PH 0.75~7.5KW
● 220VAC 1PH To 380VAC 3PH 0.75~2.2KW
● DC TO AC Solar Pump Inverter
Single Phase 220V 80~400Vdc
Three Phase 380V 120~800Vdc
H380 – 2R2G /3 R0P - T4
No. | Sign | Description | Remarks |
① | H380 | Product Series | FMZ H380 Series Frequency Inverter |
② | 2R2G | Power range + Load type | 2R2G: 2.2kW; G: Heavy Load |
③ | 3R0P | Power range + Load type | 3R0P: 3.0kW; P: Light Load |
④ | T4 | Voltage | S1: AC 220V(-15%)-220(+15%) 1PH Input & 1PH Output S2: AC 220V(-15%)-220(+15%) 1PH Input & 3PH Output T2: AC 220V(-15%)-220(+15%) 3PH Input & 3PH Output T4: AC 380V(-15%)-380(+15%) 3PH Input & 3PH Output S4: AC 220V(-15%)-220(+15%) 1PH Input & AC 380V(-15%)-380(+15%) 3PH Output |
Product features:
(1)V/F & SVC
(2)380V all power IGBT design
(3)Compact design with easy operation
(4)Parameter auto-tuning function: static parameter auto-tuning function
(5)Customized functions are available ( We support OEM & ODM)
(7)Built-in PID & Standard RS485 communication;
Model Selection Table
Model | Rated Power (KW) | Rated Current (A) | Outline Dimension(mm) | Package Dimension(mm) | G.W (KG) |
220V 1-phase input & 3-phase output （Voltage Range: -15% 220V~220V+15%） |
H380-0R4G-S2 | 0.4 | 2.5A | 85*143*116 | 230*160*170 | 1.3KG |
H380-0R7G-S2 | 0.75 | 5.0A |
H380-1R5G-S2 | 1.5 | 7.0A |
H380-2R2G-S2 | 2.2 | 10A | 100*151*120 | 1.5KG |
380V 3-phase input & 3-phase output （Voltage Range: -15% 380V~380V+15%） |
H380-0R7G/1R5P-T4 | 0.75 | 3.0A | 100*151*120 | 230*160*170 | 1.5KG |
H380-1R5G/2R2P-T4 | 1.5 | 4.0A |
H380-2R2G/4R0P-T4 | 2.2 | 5.0A |
H380-4R0G/5R5P-T4 | 4.0 | 8.5A | 113*209*188 | 320*170*245 | 2.78KG |
H380-5R5G/7R5P-T4 | 5.5 | 13A | 2.8KG |
H380-7R5G/11RP-T4 | 7.5 | 18A | 2.82KG |
220V 3-phase input & 3-phase output （Voltage Range: -15% 220V~220V+15%） |
H380-0R4G-T2 | 0.4 | 2.5A | 100*151*120 | 230*160*170 | 1.5KG |
H380-0R7G-T2 | 0.75 | 5.0A |
H380-1R5G-T2 | 1.5 | 7.0A |
H380-2R2G-T2 | 2.2 | 10A |
220V 1-phase input & 1-phase output （Voltage Range: -15% 220V~220V+15%） |
H380-0R4G-S1 | 0.4 | 2.5A | 85*143*116 | 230*160*170 | 1.3KG |
H380-0R7G-S1 | 0.75 | 5.0A |
H380-1R5G-S1 | 1.5 | 7.0A |
H380-2R2G-S1 | 2.2 | 10A | 100*151*120 | 1.5KG |
110V 1-phase input &3-phase output （Voltage Range: -15% 110V~110V+15%） |
H380-0R4G-S2-110V | 0.4 | 2.5A | 85*143*116 | 230*160*170 | 1.3KG |
H380-0R7G-S2-110V | 0.75 | 5.0A |
H380-1R5G-S2-110V | 1.5 | 7.0A |
220V 1-phase input & 380V 3-phase output （Voltage Range: -15% 220V~380V+15%） |
H380-0R7G-S4 | 0.75 | 5.0A | 100*151*120 | 230*160*170 | 1.5KG |
H380-1R5G-S4 | 1.5 | 7.0A |
H380-2R2G-S4 | 2.2 | 10A |

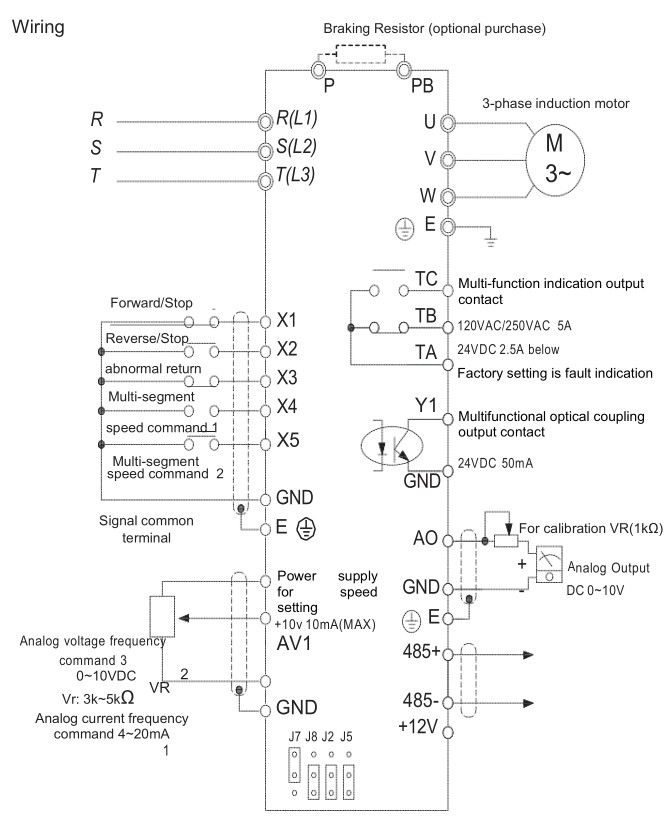

Wiring Diagram
Product application:
●Industrial Manufacturing
Production lines, conveyors, packaging machines, assembly systems
●Water & Wastewater Treatment
Water supply, sewage treatment, irrigations
●Fans & Blowers
Airflow in ventilation, exhaust, cooling systems
●Pumps & Compressors
Oil & gas, chemical processing, industrial plants
●Conveyor Belt Systems
Mining, logistics, material handling, smooth operation
●Machine Tools & CNC Equipment
Lathes, milling machines, cutting tools, precision control
●Renewable Energy
Wind turbines, solar pumping systems
