H580 Series Industrial Special Application Frequency Inverter

①

H580

Product Series

FMZ H580 Series Frequency Inverter

②

22RG

Power range + Load type

22RG: 22kW; G: Heavy Load

③

30RP

Power range + Load type

30RP: 30kW; P: Light Load

④

T4

Voltage

S1: AC 220V(-15%)-220(+15%) 1PH Input & 1PH Output

S2: AC 220V(-15%)-220(+15%) 1PH Input & 3PH Output

T2: AC 220V(-15%)-220(+15%) 3PH Input & 3PH Output

T4: AC 380V(-15%)-380(+15%) 3PH Input & 3PH Output

S4: AC 220V(-15%)-220(+15%) 1PH Input

&AC 380V(-15%)-380(+15%) 3PH Output

Three-phase 380V, 50/60 Hz

H580-1R5G/2R2P-T4

1.5

3.8

186*125*164

240*173*240

2

H580-2R2G/4R0P-T4

2.2

5.1

2

H580-4R0G/5R5P-T4

4.0

9

248*160*183

305*215*205

3.6

H580-5R5G/7R5P-T4

5.5

13

3.6

H580-7R5G/11RP-T4

7.5

17

4

H580-11RG/15RP-T4

11

25

322*208*192

410*295*285

5.8

H580-15RG/18RP-T4

15

32

6

H580-18RG/22RP-T4

18

37

6.2

H580-22RG/30RP-T4

(Plastic shell)

22

45

6.9

H580-22RG/30RP-T4

(Plastic shell)

22

45

463*285*228

560*380*330

16.5

H580-30RG/37RP-T4

30

60

16.8

H580-37RG/45RP-T4

37

75

17.8

H580-45RG/55RP-T4

45

91

600*385*265

610*415*300

33.7

H580-55RG/75RP-T4

55

112

34

H580-75RG/90RP-T4

75

150

37.1

H580-90RG/110RP-T4

90

176

700*473*307

750*515*335

50.2

H580-110RG/132RP-T4

110

210

50.7

H580-132RG/160RP-T4

132

253

930*579*380

960*600*400

94.5

H580-160RG/185RP-T4

160

304

96.4

H580-200RG/220RP-T4

200

377

108

H580-220RG/250RP-T4

220

426

1060*650*377

1080*670*415

145

H580-250RG/280RP-T4

250

465

148

H580-280RG/315RP-T4

280

520

151

H580-315RG/350RP-T4

315

585

155

H580-355RG-T4

355

650

1358*800*400

1390*840*430

224

H580-400RG-T4

400

725

230

H580-450RG-T4

450

820

240

H580-500RG-T4

500

880

245

H580-630RG-T4

630

1080

250

Individualized

Functions

Maximum Frequency

Vector control: 0-300 Hz

V/F control: 0-3200 Hz

Carrier Frequency

0.5~16 kHz The carrier frequency is automatically adjusted based on the load features.

Input Frequency

Resolution

Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.025%

Control Mode

Open loop vector control (SVC)

Closed loop vector control (FVC)

V/F control

Startup Torque

G type: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC)

P type: 0.5 Hz/100%

Speed Range

1:100 (SFVC)

1:1000 (CLVC)

Speed Stability Accuracy

±0.5% (SFVC)

±0.02% (CLVC)

Torque Control Accuracy

±5% (CLVC)

Virtual I/Os

Five groups of virtual DI/Dos can realize simple logic control.

Timing Control

Time range: 0.0~500.0 minutes

Multi-motor Switchover

Four motors can be switched over via four groups of motor parameters.

Multiple Communication

Protocols

It supports communication via Modbus-RTU, PROFIBUS-DP, CANlink and CANopen.

Motor Overheat

Protection

The optional I/O extension card enables AI3 to receive the motor temperature sensor input (PT100, PT1000) so as to realize motor overheat protection

Multiple Encoder Types

It supports various encoders such as differential encoder, open-collector encoder, resolver and UVW encoder

User Programmable

Function

The optional programming card helps you to realize secondary development. Its programming environment is compatible with that of the PLC of FMZ.

Advanced background

software

It supports the operation of AC drive parameters and virtual oscillograph function, via which the state inside the AC drive is monitored.

Run

Running Command

source

Operation panel

Control terminals

Serial communication port

You can perform switchover between these sources in various ways

Frequency Source

There are a total of 10 frequency sources, such as digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting. You can perform switchover between these sources in various ways.

Auxiliary Frequency

Source

There are ten auxiliary frequency sources. It can frequency synthesis

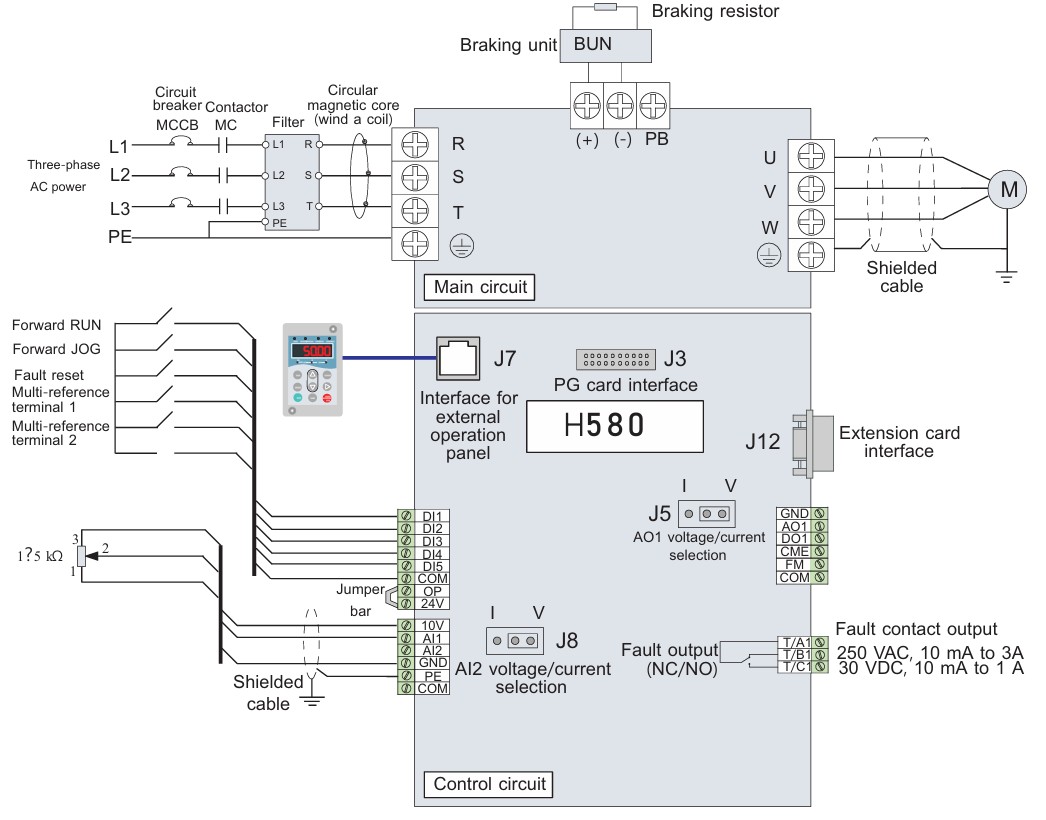

Input Terminal

Standard:

5 digital input (DI) terminals, one of which supports up to 100 kHz high-speed pulse input5

2 analog input (AI) terminals, one of which only supports 0-10 V voltage input and the other supports 0-10 V voltage input or 4?0 mA current input

Expanding capacity:

5 DI terminals

1 AI terminal that supports -10-10 V voltage input and also supports PT100PT1000

Standard Functions

Overload Capacity

G type: 60s for 150% of the rated current, 3s for 180% of the rated current

P type: 60s for 120% of the rated current, 3s for 150% of the rated current

Torque Boost

Fixed boost

Customized boost 0.1%–30.0%

V/F Curve

Straight-line V/F curve

Multi-point V/F curve

N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)

V/F Separation

Two types: complete separation; half separation

Ramp Mode

Straight-line ramp

S-curve ramp Four kinds of acceleration/deceleration time with the range of 0.0–6500.0s

DC Braking

DC braking frequency: 0.00 Hz to maximum frequency

Braking time: 0.0–36.0s

Braking action current value: 0.0%–100.0%

JOG Control

JOG frequency range: 0.00–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500.0s

Onboard Multiple Preset

Speeds

It implements up to 16 speeds via the simple PLC function or combination of DI terminal states.

Built-in PID

It realizes process-controlled closed loop control system easily.

Auto voltage regulation

(AVR)

It can keep constant output voltage automatically when the mains voltage changes.

Overvoltage/

Overcurrent stall control

The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/overcurrent

Torque limit and control

It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the CLVC mode

Individualized Functions

High Performance

Control of asynchronous motor and synchronous motor are implemented through the high-performance current vector control technology.

Power Dip Ride Through

The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.

Rapid Current Limit

It helps to avoid frequent overcurrent faults of the AC drive.

Run

Output Terminal

Standard:

1 high-speed pulse output terminal (open-collector) that supports 0–100 kHz square wave signal output

1 digital output (DO) terminal

1 relay output terminal

1 analog output (AO) terminal that supports 0–20 mA current output or 0–10 V voltage output Expanding capacity:

1 DO terminal

1 relay output terminal

1 AO terminal that supports 0–20 mA current output or 0–10 V voltage output

Display Panel

LED Display

It displays the parameters

Parameter Clone

Parameters can be cloned quickly via the optional LCD operation panel

Key Locking and Function

Selection

It can lock the keys partially or completely and defne the function range of some keys so as to prevent misfunction

Protection Mode

Motor short-circuit detection at power-on, input/ output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection and overload protection

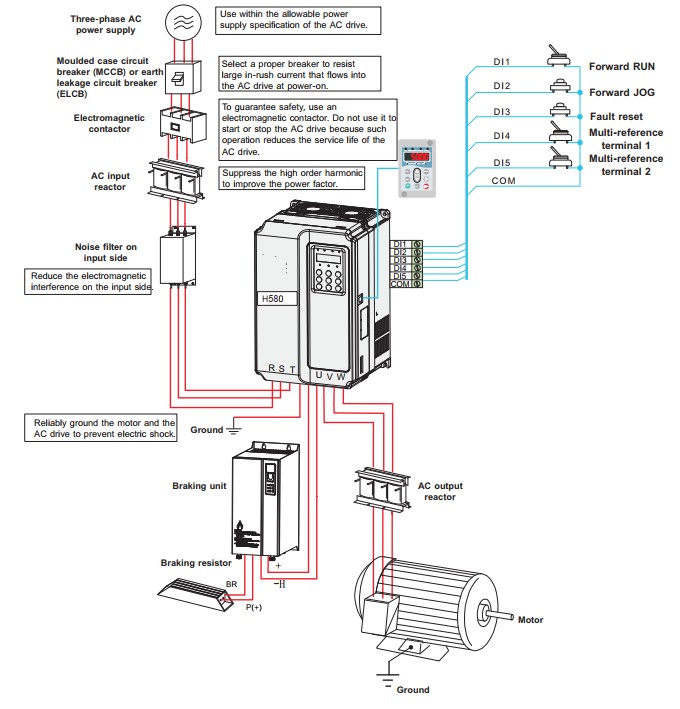

Optional Parts

LCD operation panel, braking unit, I/O extension card 1, I/O extension card 2, user programmable card, RS485 communication card, PROFIBUS-DP communication card, CANlink communication card, CANopen communication card, differential input PG card, UVW differential input PG card, resolver PG card and OC input PG card

Environment

Installation Location

Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt.

Altitude

Lower than 1000 m

Ambient Temperature

-10℃ ~ +40℃

Humidity

Less than 95%RH, without condension

Vibration

Less than 5.9 m/s 2 (0.6 g)

Storage Temperature

-20℃ ~ +60℃

IP level

IP20

Pollution Degree

PD2

Power Distribution

System

TN,TT
